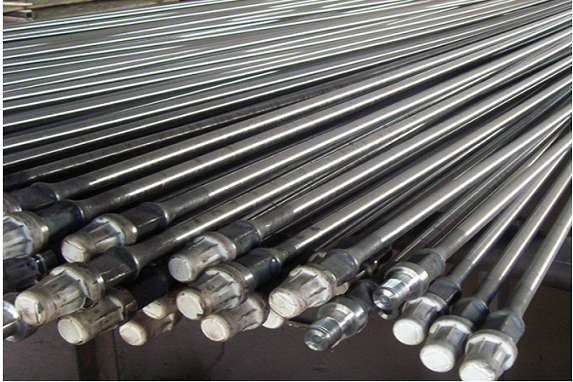

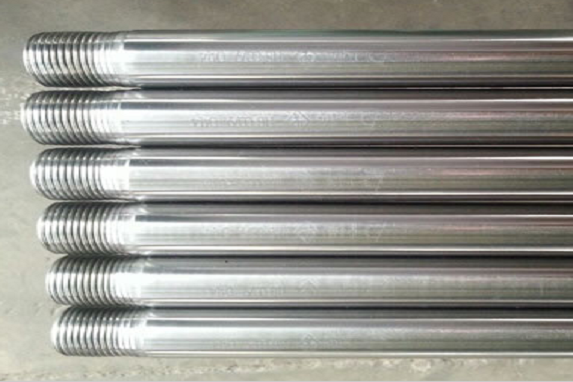

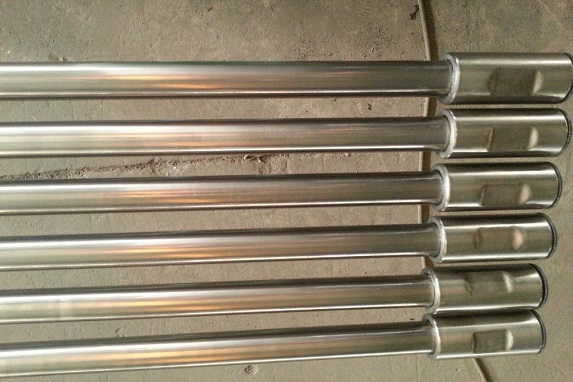

Polished Rod

Sunrise Petro can supply polished rods which comply with API 11B standard. They are manufactured through many processes including the testing, straightening and forging. Polished rods are made of high quality carbon steel and alloy steel due to customer request. Our polished rods are exported to the United States, Canada, Europe, and Middle East, and we establish cooperative relationships with international customers all over the world.

Description
Technical Data
More Details
Contact Us Now
Description

The polished rod is a special sucker rod for connecting the sucker rod and the beam hanger. Because it is located at the upper part of the sucker rod and bears the largest force, the diameter of the polished rod is larger than that of the sucker rod, the steel grade is higher, and the surface is smoother. The polished rod has mainly two types: regular grade D polished rod and end upsetting polished rod.

Technical Data

The regular grade D polished rods are connected by polished rod coupling.

Regular Polished Rod Specification

Size

1-1/8"

1-1/4"

1-1/2"

Rod body diameter

1-1/8"

1-1/4"

1-1/2"

Thread nominal diameter

15/16"

1-1/16"

1-3/16"

With of sucker rod size

5/8"

3/4"

7/8"

Standard length

25', 26', 30' or customized.

The one-end upsetting polished rods are connected to the sucker rod directly for usage.

One End Upsetting Polished Rod Specification

Rod body diameter

1"

1-1/8"

1-1/4"

EUE thread nominal diameter

1-3/16"

1-3/8"

1-9/16"

NUE thread nominal diameter

15/16"

1-1/16"

1-3/16"

With of sucker rod

1-3/16"

1-3/8"

1-9/16"

Standard length

25', 26', 30' or customized.

Specification

Material: SS, alloy steel.

Type: regular polished rod, end upsetting polished rod.

Rod diameter: 1", 1-1/8", 1-1/4", 1-1/2".

Length: 25', 26', 30' or customized.

Grade

Polished rods also have C,D,K and KD strength grades as sucker rods.

More Details

Features

High tensile strength.

Can be used with the sucker rod and hollow sucker rod.

Corrosion resistant.

Smooth surface

Application

Polished rod is mainly used for connecting between the pumping unit and rod string in the oil well.

The regular grade D polished rod is not used for high corrosion environments.

The end upsetting polished rod can be used combined with sucker rod for usage.

Contact Us Now

Contact Us For A Quick Quote

Full Polished rod Support

Technical Support

Email Support

Petro Solutions

Local team support on Polished rod

Polished rod Solutions from China

Sunrise Petro can supply API Sucker rod including the common sucker rod& pony rod, polished rod and sinker bar. Based on API Spec 11B and SY / T 5029 specifications, Sunrise Petro also developed a series of special sucker rods suitable for different well conditions, especially under high corrosion and high load conditions for oil well.

Our technical staff is ready to provide assistance in selection and design.With inventory and field sales support in strategic location, we are ready to respond in a timely professional manner 24 hours a day.
